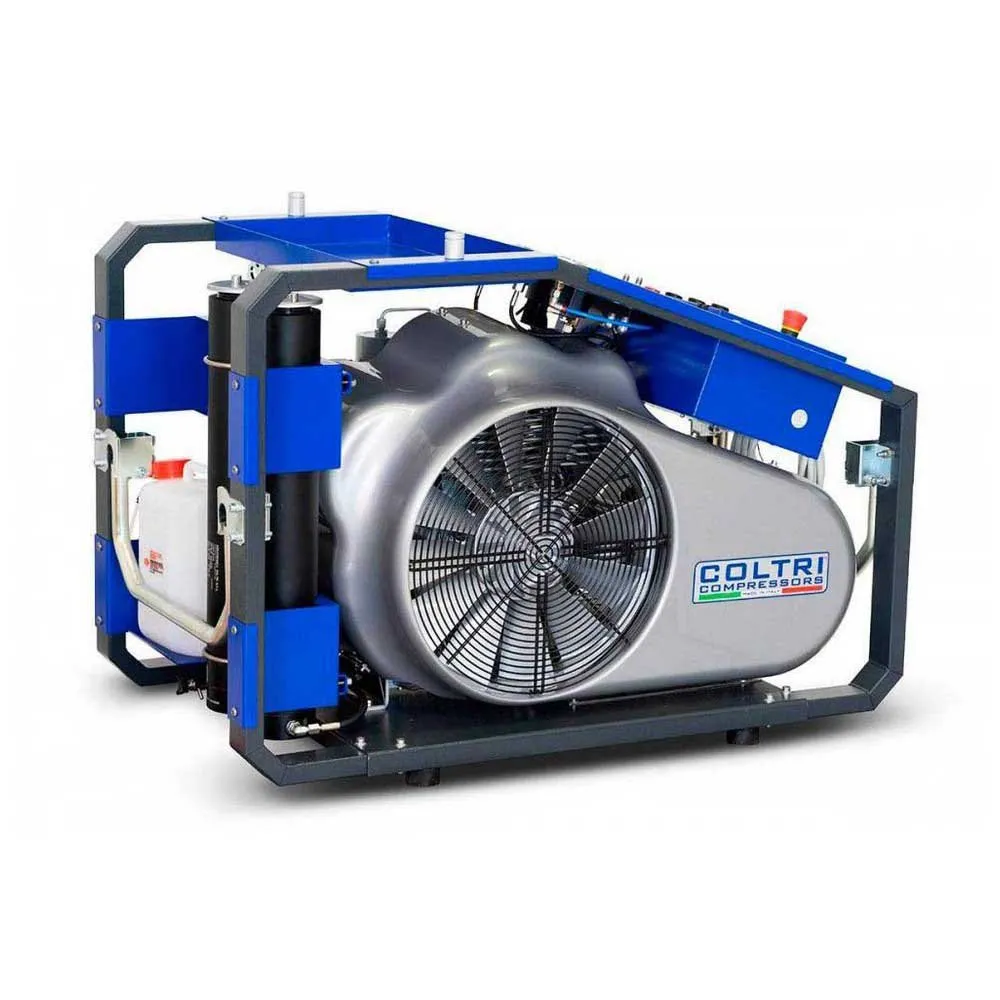

MCH23 Ergo TPS Three Phase Compressor

Model not valid for the American market, 50 Hz electric motor.

Compactness, performance, robustness and transportability are the main features of the ERGO TPS breathable air compressors.

Equipped with four different pumping units (MCH 13, MCH 16, MCH 21 and MCH 23), all in TPS (Tropical Plus Superdry) version and powered by three-phase electric motors.

The compressors have a monitoring system panel including pressure gauges, autostop with adjustable pressure switch, automatic condensate drain and and a phase control for rotation direction.

The models of this series have two connections for high pressure hoses (from 232 to 330 bar) and an improved filtering system with two Hyperfilters.

Technical drawing H:770 mm – W:1120 mm – D:630 mm H:30.31 in – W:44.09 in – D:24.80 in Pumping group capacity MCH 13 Three-phase Electric Motor – 235 l/m – 14,10 m³/h – 8.30 CFM FAD MCH 16 Three-phase Electric Motor – 315 l/m – 18,90 m³/h – 11.12 CFM FAD MCH 21 Three-phase Electric Motor – 345 l/m – 20,70 m³/h – 12.18 CFM FAD MCH 23 Three-phase Electric Motor – 380 l/m – 22,80 m³/h – 13.42 CFM FAD Filling time:* * Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) MCH 13 Three-phase Electric Motor – 8 min.

30 sec.

MCH 16 Three-phase Electric Motor – 6 min.

20 sec.

MCH 21 Three-phase Electric Motor – 5 min.

40 sec.

MCH 23 Three-phase Electric Motor – 5 min.

15 sec.

Operating pressure 232 – 300 – 330 bar 3365 – 4351 – 4786 PSIG Net weight MCH 13 – Three-phase Electric Motor – 174 kg – 384 Lbs MCH 16 – Three-phase Electric Motor – 184 kg – 406 Lbs MCH 21 – Three-phase Electric Motor – 184 kg – 406 Lbs MCH 23 – Three-phase Electric Motor – 184 kg – 406 Lbs Noise level MCH 13 Three-phase Electric Motor – 80,7 db MCH 16 Three-phase Electric Motor – 82,3 db MCH 21 Three-phase Electric Motor – 83 db MCH 23 Three-phase Electric Motor – 83 db Available on request MCH 13 Single-phase Electric Motor MCH 16 Single-phase Electric Motor.
